Power Amplifier
Output power: More than 200W + 200W in 8 ohms, Dual mono

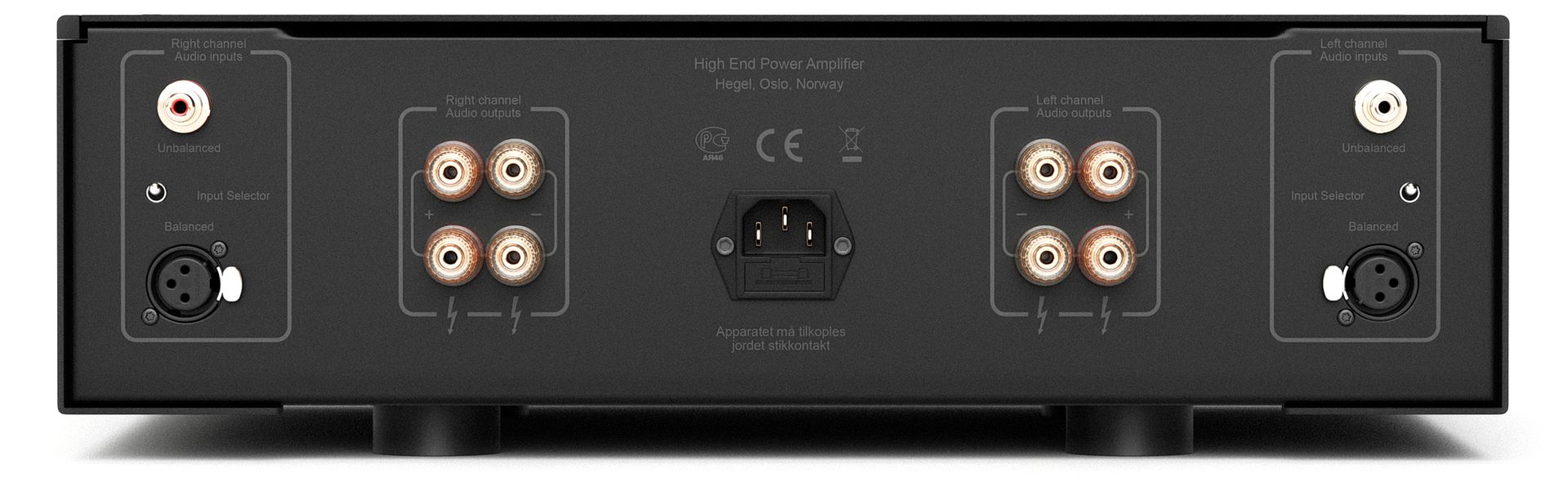

Inputs: RCA unbalanced and XLR balanced
Speaker outputs: Two pairs of heavy duty gold plated terminals
Input Impedance: Balanced 10kohm, unbalanced 50kohm
Frequency response: Less than +/- 0.2 dB deviation 20Hz-20kHz
Phase response: Less than 2 degrees deviation 20Hz- 20kHz
Signal to noise ratio: More than 100dB
Crosstalk: Less than -100dB
Distortion: Less than 0.006 % at 100W i 8 ohm
Intermodulation: Less than 0.01 % (19kHz + 20kHz)
Damping factor: More than 1000
Power Supply: 1000VA dual mono, 90 000uF capacitors
Output stage: 20 pcs 15A 200W high speed, Ultra low distortion bipolar transistors
Power consumption: 60W in standby switched on
Dimensions/weight: 12cm x 43cm x 37cm (HxWxD), weight 25kg
